RODE NTR Premium Ribbon Microphone

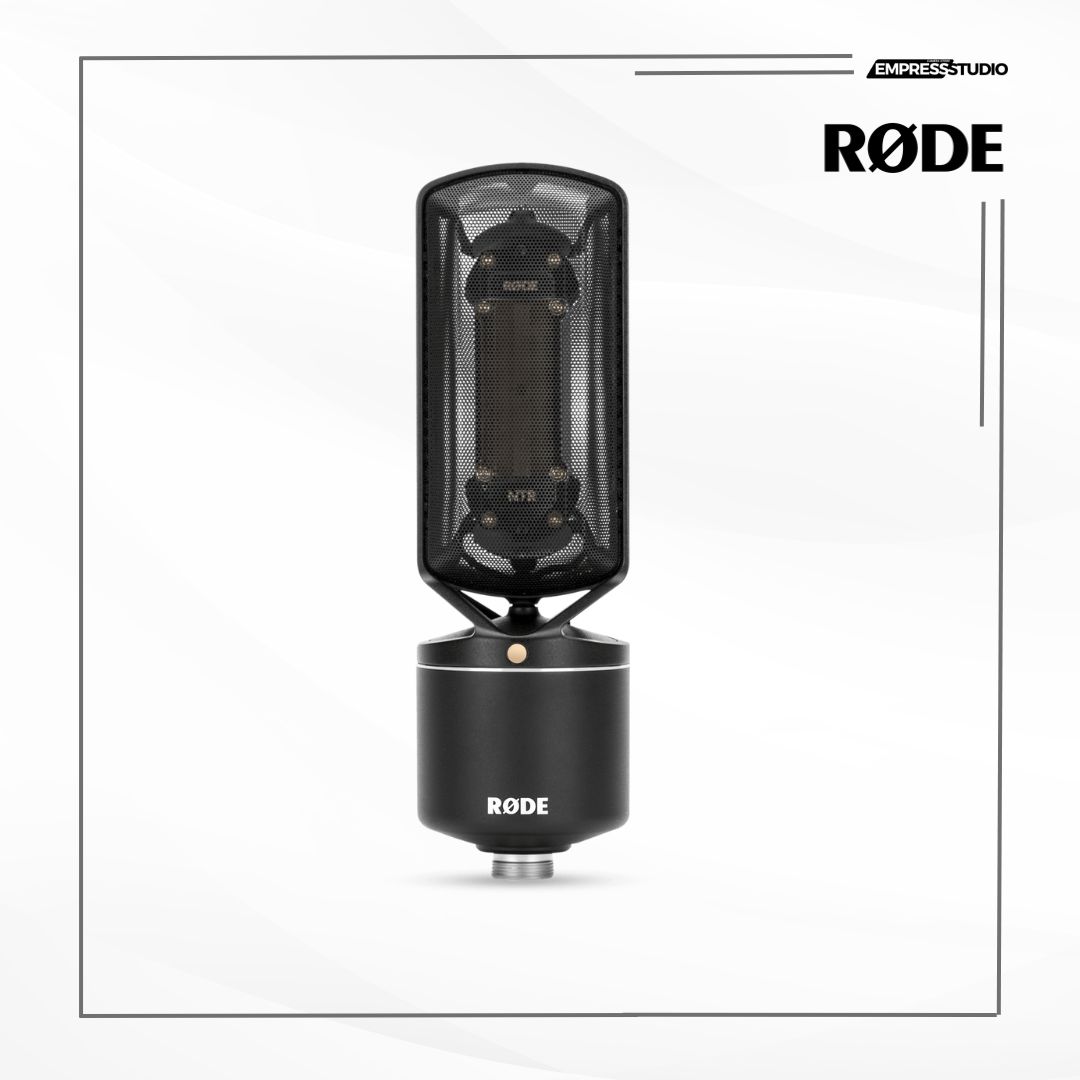

RØDE NTR – Active Ribbon Microphone

Description

The RØDE NTR is a revolutionary active ribbon microphone that combines classic ribbon mic characteristics with modern precision engineering. Featuring ultra-thin 1.8-micron ribbon technology, high sensitivity, and an extended high-frequency response, the NTR excels in applications far beyond traditional ribbon microphones, making it an exceptional choice for vocals, orchestras, guitars, pianos, and even drums.

With custom-designed active electronics, an ultra-low-noise transformer, and optimized acoustic transparency, the NTR delivers unparalleled fidelity while being compatible with any standard preamp without requiring additional gain.

Technical Specifications

Acoustic & Audio Performance

• Acoustic Principle: Velocity Transducer
• Polar Pattern: Figure-8 Bi-Directional
• Frequency Range: 20 Hz – 20 kHz
• Maximum SPL: 130 dB SPL
• Output Impedance: 200Ω
• Sensitivity: -30.5 dB re 1 Volt/Pascal (30.00mV @ 94 dB SPL) ±2 dB @ 1kHz
• Equivalent Noise Level: 15 dBA

Electronics & Power

• Active Electronics: Step-up Transformer & Balanced Preamp Stage
• Power Requirements: 48V Phantom Power (P48)
• Connection Type: XLR

Mechanical & Design

• Ribbon Thickness: 1.8 microns (one of the thinnest in the world)
• Ribbon Cutting Technology: Proprietary laser-cut precision to eliminate micro-tears
• Internal Shock Mount: Minimizes external vibrations and resonance
• Acoustically Transparent Metal Mesh: Reduces acoustic shadowing

Key Features

✅ Ultra-Thin 1.8-Micron Ribbon: High sensitivity and extended high-frequency response.
✅ Active Electronics: Step-up transformer & low-noise preamp for high-output signal.
✅ Figure-8 Polar Pattern: Captures sound from front & back while rejecting side noise.
✅ Extended Frequency Response (20Hz – 20kHz): Provides warm lows & smooth highs.
✅ Built-in High-Quality Transformer: Ensures maximum fidelity and signal clarity.
✅ Internal Ribbon Suspension System: Minimizes resonance & mechanical noise.
✅ No Need for High-Gain Preamps: Works with standard preamps and interfaces.
✅ Versatile Applications: Ideal for vocals, guitars, strings, pianos, and drum overheads.

Use Cases

🎤 Vocal Recording: Smooth, natural ribbon mic sound for studio-quality vocals.
🎻 Orchestras & Strings: Captures rich, organic tones with detailed high-end.
🎸 Electric & Acoustic Guitars: Perfect for amp cabinets and acoustic guitar recording.
🎹 Piano & Grand Piano Recording: Provides depth and clarity for concert-quality recordings.
🥁 Drum Overheads & Percussion: Handles high SPL with warm, natural sound reproduction.

What’s in the Box?

📦 1x RØDE NTR – Active Ribbon Microphone
📦 1x RM2+ Microphone Mount – For stable and secure positioning
